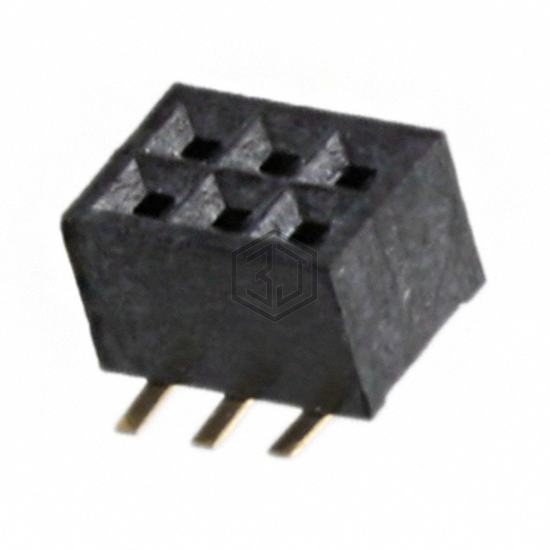

CONN HDR 6POS 0.039 GOLD SMD
SFM210-LPSE-D03-SP-BK is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Sullins Connector Solutions. CONN HDR 6POS 0.039 GOLD SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, current rating (amps) 1A, termination Solder.
In Stock: 17,789
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Top or Bottom Entry |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.039" (1.00mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.039" (1.00mm) |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 10.0µin (0.25µm) |
| Insulation Color | Black |
| Insulation Height | 0.087" (2.20mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 125°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Board Guide |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Submit your RFQ for SFM210-LPSE-D03-SP-BK and get a quote within 24 hours.
