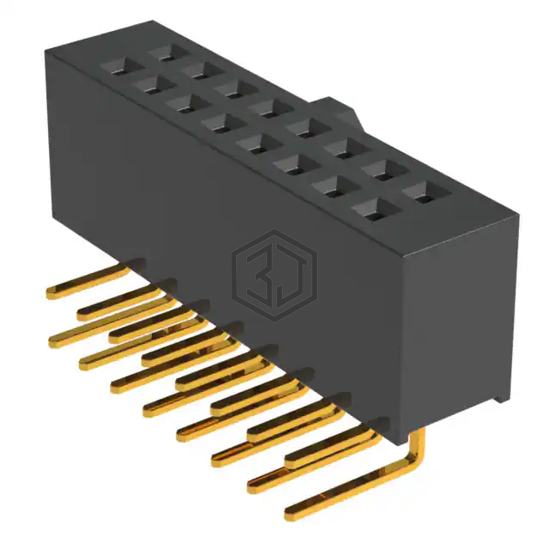

CONN HDR 16POS 0.1 GOLD PCB R/A
SFH11-PBPC-D08-RA-BK is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Sullins Connector Solutions. CONN HDR 16POS 0.1 GOLD PCB R/A. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, current rating (amps) 3A, termination Solder.
In Stock: 1,232
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 16 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | Black |
| Insulation Height | 0.236" (6.00mm) |
| Contact Length - Post | 0.106" (2.69mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | Polarizing Key |
| Current Rating (Amps) | 3A |
| Voltage Rating | - |
Submit your RFQ for SFH11-PBPC-D08-RA-BK and get a quote within 24 hours.
