CONN HEADER VERT 16POS 1.27MM

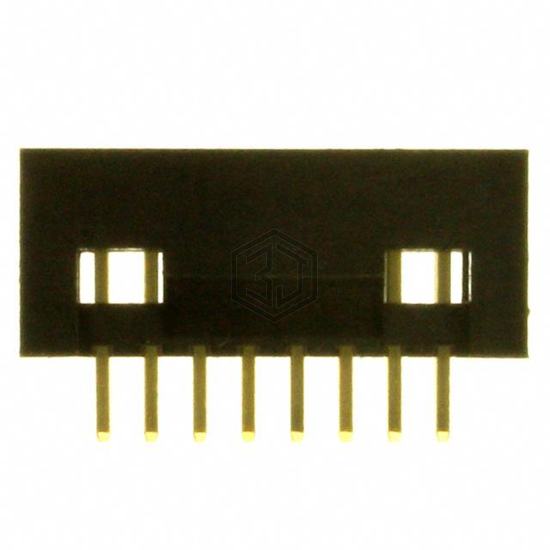

SBH31-NBPB-D08-ST-BK is a Rectangular Connectors - Headers, Male Pins manufactured by Sullins Connector Solutions. CONN HEADER VERT 16POS 1.27MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Brass, current rating (amps) 1A.
In Stock: 980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.050" (1.27mm) |
| Number of Positions Loaded | All |
| Style | Board to Board |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.094" (2.40mm) |
| Overall Contact Length | - |
| Insulation Height | 0.213" (5.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA9T), Nylon 9T |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Submit your RFQ for SBH31-NBPB-D08-ST-BK and get a quote within 24 hours.
