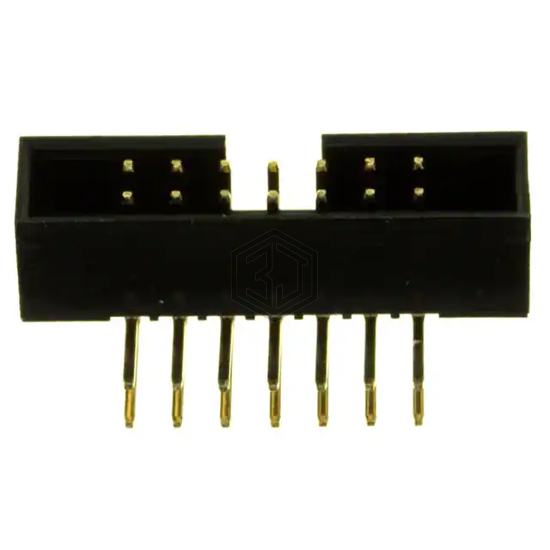

CONN HEADER R/A 14POS 2MM
SBH21-NBPN-D07-RA-BK is a Rectangular Connectors - Headers, Male Pins manufactured by Sullins Connector Solutions. CONN HEADER R/A 14POS 2MM. Key specifications: mounting type Through Hole, Right Angle, operating temperature -40°C ~ 105°C, contact material Brass, current rating (amps) 2A.
In Stock: 16,893
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Male Pin |
| Pitch - Mating | 0.079" (2.00mm) |
| Number of Positions | 14 |
| Number of Rows | 2 |
| Row Spacing - Mating | 0.079" (2.00mm) |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall |
| Mounting Type | Through Hole, Right Angle |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | - |
| Contact Length - Post | 0.110" (2.79mm) |
| Overall Contact Length | - |
| Insulation Height | 0.213" (5.40mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polyamide (PA), Nylon |
| Features | Keying Slot |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 2A |
| Voltage Rating | - |
