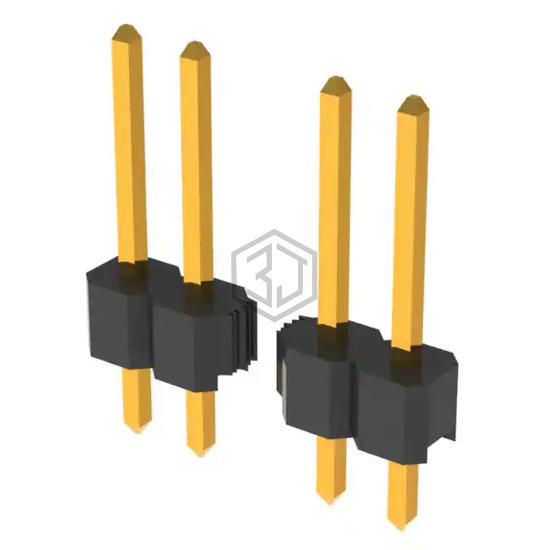

CONN HEADER VERT 31POS 2.54MM
PRPC031SFAN-RC is a Rectangular Connectors - Headers, Male Pins manufactured by Sullins Connector Solutions. CONN HEADER VERT 31POS 2.54MM. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, contact material Brass, current rating (amps) 3A per Contact.
In Stock: 5,802
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Breakaway |
| Contact Type | Male Pin |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Positions | 31 |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Number of Positions Loaded | All |
| Style | Board to Board or Cable |
| Shrouding | Unshrouded |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Length - Mating | 0.318" (8.08mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | 0.537" (13.63mm) |
| Insulation Height | 0.098" (2.50mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish - Post | Gold |
| Contact Material | Brass |
| Insulation Material | Polybutylene Terephthalate (PBT) |
| Features | - |
| Operating Temperature | -40°C ~ 105°C |
| Ingress Protection | - |
| Material Flammability Rating | UL94 V-0 |
| Insulation Color | Black |
| Current Rating (Amps) | 3A per Contact |
| Voltage Rating | - |
