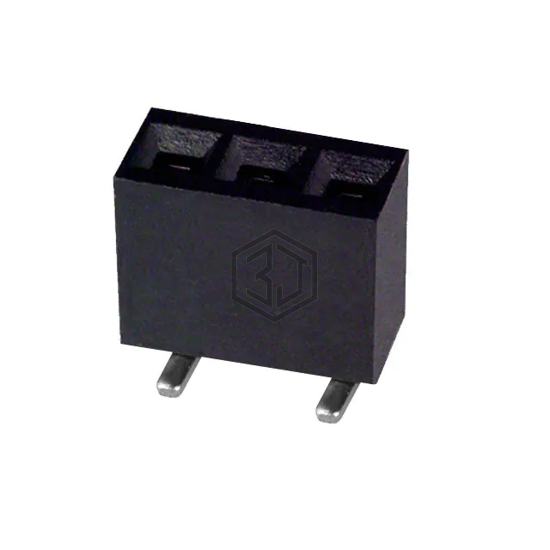

CONN HDR 3POS 0.1 TIN SMD
NPTC031KFXC-RC is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Sullins Connector Solutions. CONN HDR 3POS 0.1 TIN SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C, voltage rating 250V, current rating (amps) 3A.
In Stock: 44,910
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header, Top or Bottom Entry |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 3 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.100" (2.54mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Surface Mount |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Tin |
| Contact Finish Thickness - Mating | - |
| Insulation Color | Black |
| Insulation Height | 0.280" (7.10mm) |
| Contact Length - Post | - |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Tin |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
Submit your RFQ for NPTC031KFXC-RC and get a quote within 24 hours.
