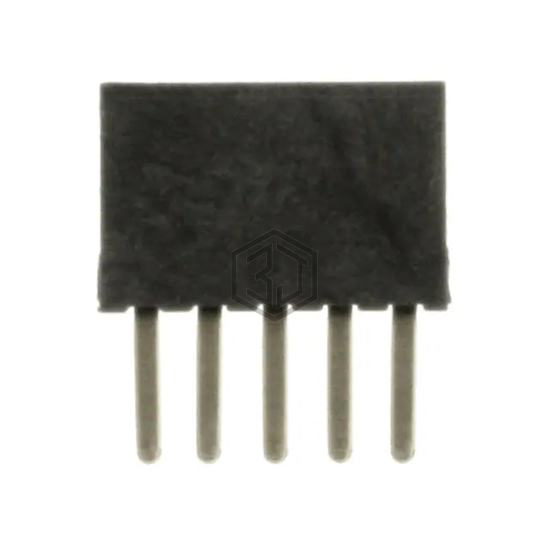

CONN HDR 5POS 0.05 GOLD PCB
LPPB051NFFN-RC is a Rectangular Connectors - Headers, Receptacles, Female Sockets manufactured by Sullins Connector Solutions. CONN HDR 5POS 0.05 GOLD PCB. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, current rating (amps) 1A, termination Solder.
In Stock: 3,292
| Attribute | Value |
|---|---|
| Product Status | Active |
| Connector Type | Header |
| Contact Type | Female Socket |
| Style | Board to Board |
| Number of Positions | 5 |
| Number of Positions Loaded | All |
| Pitch - Mating | 0.050" (1.27mm) |
| Number of Rows | 1 |
| Row Spacing - Mating | - |
| Mounting Type | Through Hole |
| Termination | Solder |
| Fastening Type | Push-Pull |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Insulation Color | - |
| Insulation Height | 0.177" (4.50mm) |
| Contact Length - Post | 0.118" (3.00mm) |
| Operating Temperature | -40°C ~ 105°C |
| Material Flammability Rating | UL94 V-0 |
| Contact Finish - Post | Gold |
| Mated Stacking Heights | - |
| Ingress Protection | - |
| Features | - |
| Current Rating (Amps) | 1A |
| Voltage Rating | - |
Submit your RFQ for LPPB051NFFN-RC and get a quote within 24 hours.
