CONN EDGE DUAL FMALE 72POS 0.156

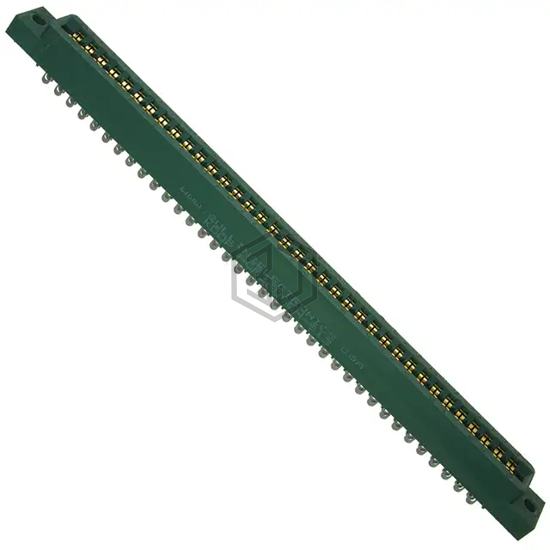

ACM36DSEH-S13 is a Card Edge Connectors - Edgeboard Connectors manufactured by Sullins Connector Solutions. CONN EDGE DUAL FMALE 72POS 0.156. Key specifications: mounting type Board Edge, Straddle Mount, operating temperature -65°C ~ 150°C, color Green, contact material Beryllium Copper.
In Stock: 560
| Attribute | Value |
|---|---|
| Product Status | Active |
| Card Type | Non Specified - Dual Edge |
| Gender | Female |
| Number of Positions/Bay/Row | 36 |
| Number of Positions | 72 |
| Card Thickness | 0.062" (1.57mm) |
| Number of Rows | 2 |
| Pitch | 0.156" (3.96mm) |
| Read Out | Dual |
| Features | Card Extender |
| Mounting Type | Board Edge, Straddle Mount |
| Termination | Solder Eyelet(s) |
| Contact Material | Beryllium Copper |
| Contact Finish | Gold |
| Contact Finish Thickness | 30.0µin (0.76µm) |
| Contact Type | Full Bellows |
| Color | Green |
| Flange Feature | Top Mount Opening, Unthreaded, 0.125" (3.18mm) Dia |
| Operating Temperature | -65°C ~ 150°C |
Submit your RFQ for ACM36DSEH-S13 and get a quote within 24 hours.
