AUTOMOTIVE FULLY INTEGRATED H-BR

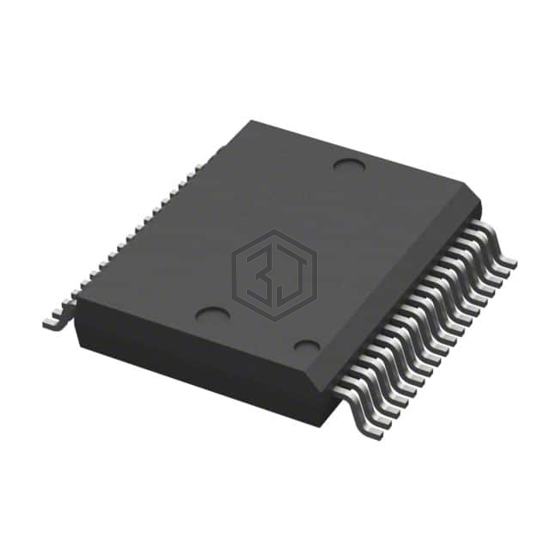

VNH7070AYTR is a PMIC - Motor Drivers, Controllers manufactured by STMicroelectronics. AUTOMOTIVE FULLY INTEGRATED H-BR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4V ~ 28V, package / case 36-PowerBFSOP (0.295", 7.50mm Width).
In Stock: 9,256
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM |
| Technology | Power MOSFET |
| Step Resolution | - |
| Applications | Automotive |
| Current - Output | 20A |
| Voltage - Supply | 4V ~ 28V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 36-PowerBFSOP (0.295", 7.50mm Width) |
| Supplier Device Package | PowerSSO-36 TP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VNH7070BASTR | STMicroelectronics | IC MOTOR DRIVER 4V-28V 16SO | 84% | View |
| VNH7070ASTR | STMicroelectronics | IC MOTOR DRIVER 4V-28V 16SOIC | 84% | View |
| VNH7100BASTR | STMicroelectronics | IC MOTOR DRIVER 4V-28V 16SO | 84% | View |
| VNH3SP30TR-E | STMicroelectronics | IC MTR DRV 5.5-36V MULTIPWRSO-30 | 70% | View |
| VNH5019ATR-E | STMicroelectronics | IC MTR DRV 5.5-24V MULTIPWRSO-30 | 70% | View |
| VNH3SP30-E | STMicroelectronics | IC MTR DRV 5.5-36V MULTIPWRSO-30 | 70% | View |
Submit your RFQ for VNH7070AYTR and get a quote within 24 hours.
