IC OFFLINE SW MULT TOP 10SSOP

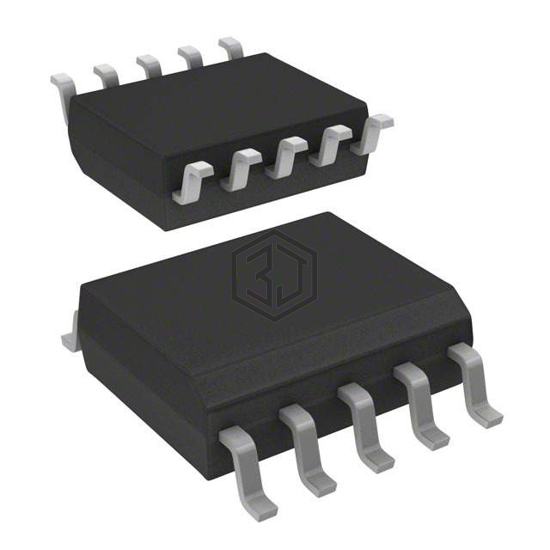

VIPER114HSTR is a PMIC - AC DC Converters, Offline Switchers manufactured by STMicroelectronics. IC OFFLINE SW MULT TOP 10SSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 4.5V ~ 30V, package / case 10-SOP (0.154", 3.90mm Width).
In Stock: 7
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Buck, Buck-Boost, Flyback |
| Voltage - Start Up | 16 V |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 30V |
| Duty Cycle | 80% |
| Frequency - Switching | 120kHz |
| Power (Watts) | 12 W |
| Fault Protection | Current Limiting, Over Load, Over Voltage, Short Circuit |
| Control Features | Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Package / Case | 10-SOP (0.154", 3.90mm Width) |
| Supplier Device Package | 10-SSOP |
| Mounting Type | Surface Mount |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VIPER0PHD | STMicroelectronics | IC OFFLINE SWITCH MULT TOP 16SO | 94% | View |
| VIPER012HSTR | STMicroelectronics | IC OFFLINE SWITCH MULT TOP 10SSO | 83% | View |
| VIPER013HS | STMicroelectronics | IC OFFLINE SW MULT TOP 10SSOP | 83% | View |
| UCC28634D | Texas Instruments | IC OFFLINE SWITCH MULT TOP 7SOIC | 71% | View |
| LNK6663K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 68% | View |
| LNK6768K-TL | Power Integrations | IC OFFLINE SWITCH FLYBACK 12ESOP | 67% | View |
Submit your RFQ for VIPER114HSTR and get a quote within 24 hours.
