IC OFFLINE SWITCH MULT TOP 7DIP

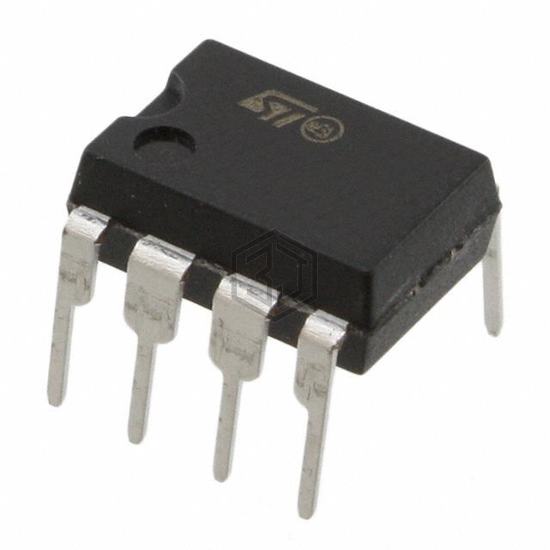

VIPER06XN is a PMIC - AC DC Converters, Offline Switchers manufactured by STMicroelectronics. IC OFFLINE SWITCH MULT TOP 7DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 11.5V ~ 23.5V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.
In Stock: 4,206
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Either |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Buck, Flyback |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 11.5V ~ 23.5V |
| Duty Cycle | 70% |
| Frequency - Switching | 30kHz |
| Power (Watts) | 8 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-DIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNK500PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 88% | View |
| LNK520PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 88% | View |
| LNK501PN | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 88% | View |
| LNK501P | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 88% | View |
| LNK500P | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 88% | View |
| LNK520P | Power Integrations | IC OFFLINE SWITCH FLYBACK 8DIP | 88% | View |
Submit your RFQ for VIPER06XN and get a quote within 24 hours.
