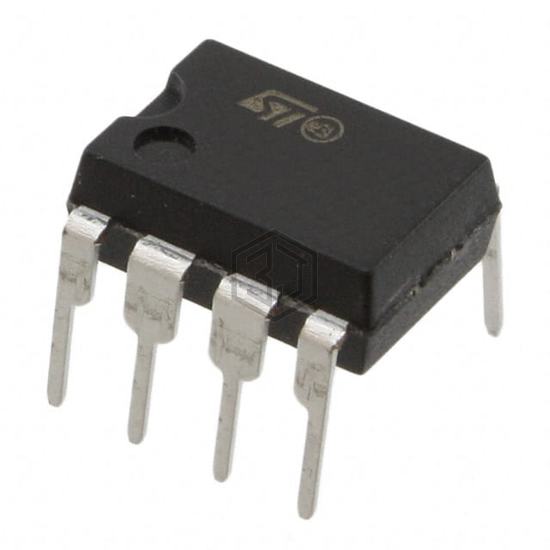

IC OFFLINE SWITCH MULT TOP 7DIP
VIPER06HN is a PMIC - AC DC Converters, Offline Switchers manufactured by STMicroelectronics. IC OFFLINE SWITCH MULT TOP 7DIP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 150°C (TJ), voltage - supply (vcc/vdd) 11.5V ~ 23.5V, package / case 8-DIP (0.300", 7.62mm), 7 Leads.
In Stock: 200
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Isolation | Either |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 800V |
| Topology | Buck, Flyback |
| Voltage - Start Up | 13 V |
| Voltage - Supply (Vcc/Vdd) | 11.5V ~ 23.5V |
| Duty Cycle | 70% |
| Frequency - Switching | 115kHz |
| Power (Watts) | 8 W |
| Fault Protection | Current Limiting, Open Loop, Over Temperature |
| Control Features | - |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Package / Case | 8-DIP (0.300", 7.62mm), 7 Leads |
| Supplier Device Package | 7-DIP |
| Mounting Type | Through Hole |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VIPER16HN | STMicroelectronics | IC OFFLINE SWITCH MULT TOP 7DIP | 96% | View |
| VIPER17HN | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 8DIP | 92% | View |
| VIPER28HN | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 7DIP | 83% | View |
| VIPER26HN | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 7DIP | 82% | View |
| VIPER37HE | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 10DIP | 79% | View |
| VIPER38HE | STMicroelectronics | IC OFFLINE SWITCH FLYBACK 10DIP | 79% | View |
Submit your RFQ for VIPER06HN and get a quote within 24 hours.
