1200 V, 40 A AUTOMOTIVE GRADE AE

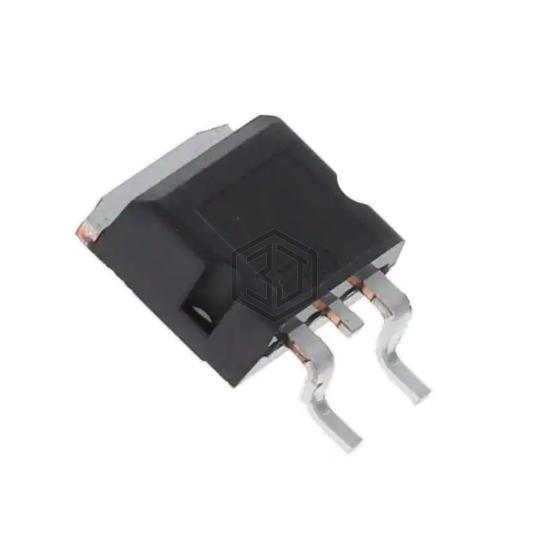

TN4050HP-12G2YTR is a Thyristors - SCRs manufactured by STMicroelectronics. 1200 V, 40 A AUTOMOTIVE GRADE AE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 420
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.3 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Voltage - On State (Vtm) (Max) | 1.55 V |
| Current - On State (It (AV)) (Max) | 25 A |
| Current - On State (It (RMS)) (Max) | 40 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Off State (Max) | 5 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 440A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | D2PAK HV |
Submit your RFQ for TN4050HP-12G2YTR and get a quote within 24 hours.
