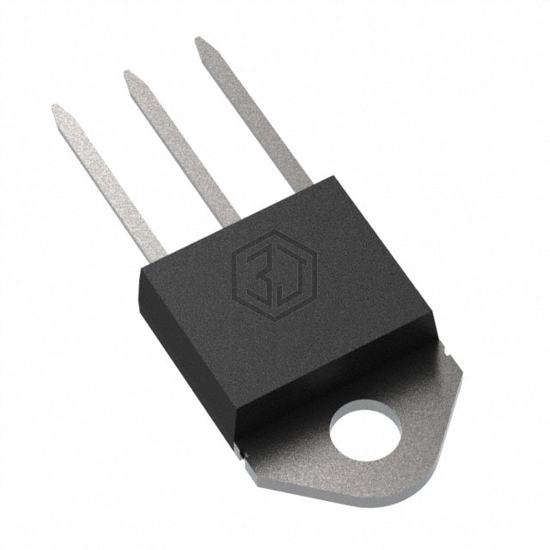

TN4050-12PI
SCR 1.2KV 40A TOP3
TN4050-12PI is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1.2KV 40A TOP3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TOP-3.
In Stock: 287
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Voltage - Off State | 1.2 kV |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V |
| Current - Gate Trigger (Igt) (Max) | 50 mA |
| Voltage - On State (Vtm) (Max) | 1.75 V |
| Current - On State (It (AV)) (Max) | 25 A |
| Current - On State (It (RMS)) (Max) | 40 A |
| Current - Hold (Ih) (Max) | 100 mA |
| Current - Off State (Max) | 10 µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 400A, 420A |
| SCR Type | Standard Recovery |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TOP-3 |
| Supplier Device Package | TOP3 |
Frequently Asked Questions
TN4050-12PI is a Thyristors - SCRs manufactured by STMicroelectronics. SCR 1.2KV 40A TOP3
The mounting type of TN4050-12PI is Through Hole.
The operating temperature range of TN4050-12PI is -40°C ~ 125°C (TJ).
The package type of TN4050-12PI is TOP-3.
