MOSFET N-CH 500V 60A MAX247

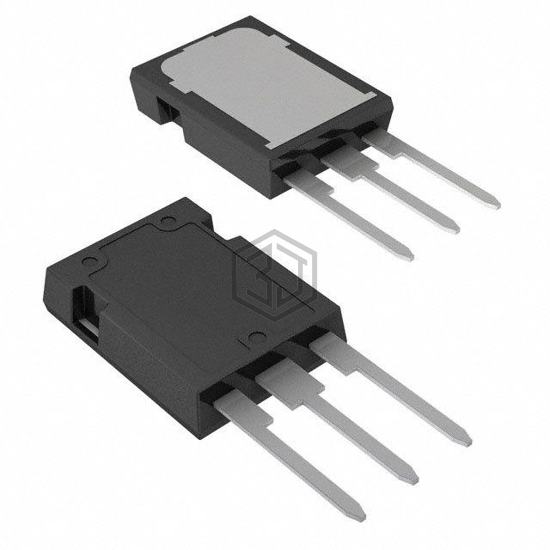

STY60NM50 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 500V 60A MAX247. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-3.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 266 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 7500 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 560W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | MAX247™ |
| Package / Case | TO-247-3 |
Submit your RFQ for STY60NM50 and get a quote within 24 hours.
