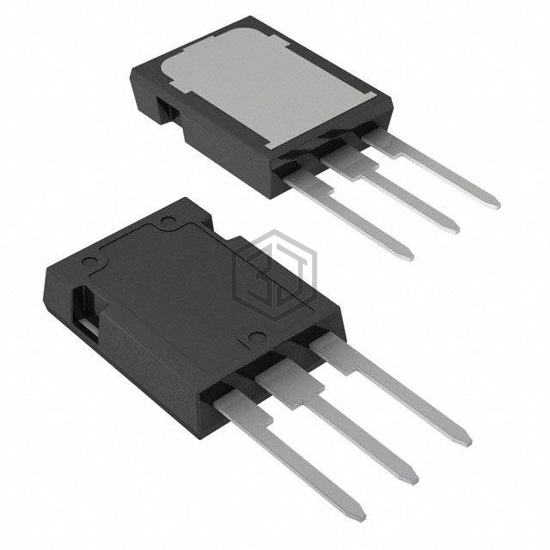

MOSFET N-CH 1050V 44A MAX247
STY50N105DK5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 1050V 44A MAX247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C, package / case TO-247-3.
In Stock: 395
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 1050 V |
| Current - Continuous Drain (Id) @ 25°C | 44A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 120mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 175 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 6600 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 625W (Tc) |
| Operating Temperature | -55°C ~ 150°C |
| Mounting Type | Through Hole |
| Supplier Device Package | MAX247™ |
| Package / Case | TO-247-3 |
Submit your RFQ for STY50N105DK5 and get a quote within 24 hours.
