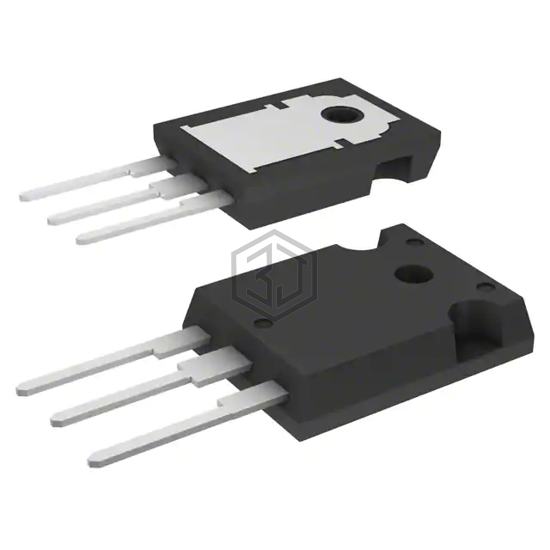

MOSFET N-CH 500V 27A TO247-3
STW30NM50N is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 500V 27A TO247-3. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-247-3.
In Stock: 222
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 27A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 115mOhm @ 13.5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 94 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 2740 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 190W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
Submit your RFQ for STW30NM50N and get a quote within 24 hours.
