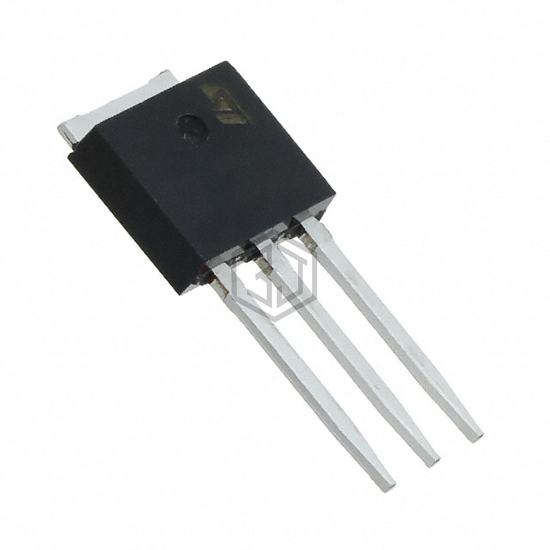

MOSFET N-CH 900V 6A IPAK
STU6N90K5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 900V 6A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-251-3 Long Leads, IPak, TO-251AB.
In Stock: 182
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 900 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 1.1Ohm @ 3A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | - |
| FET Feature | - |
| Power Dissipation (Max) | 110W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | IPAK (TO-251) |
| Package / Case | TO-251-3 Long Leads, IPak, TO-251AB |
Submit your RFQ for STU6N90K5 and get a quote within 24 hours.
