MOSFET N CH 30V 65A IPAK

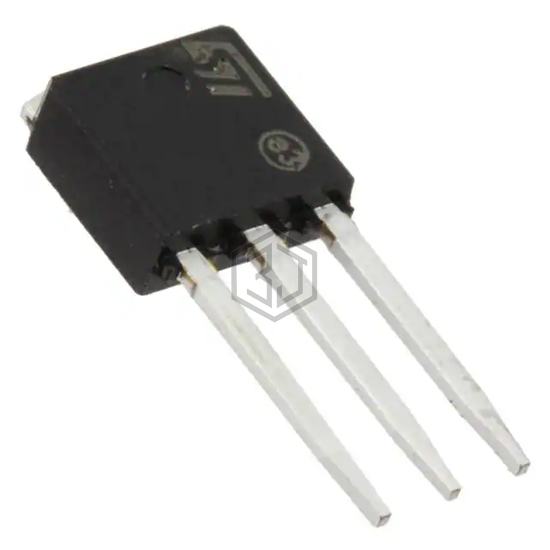

STU65N3LLH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N CH 30V 65A IPAK. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 175°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.
In Stock: 536
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 65A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 7.3mOhm @ 32.5A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 8 nC @ 4.5 V |
| Vgs (Max) | ±22V |
| Input Capacitance (Ciss) (Max) @ Vds | 1290 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 50W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
Submit your RFQ for STU65N3LLH5 and get a quote within 24 hours.
