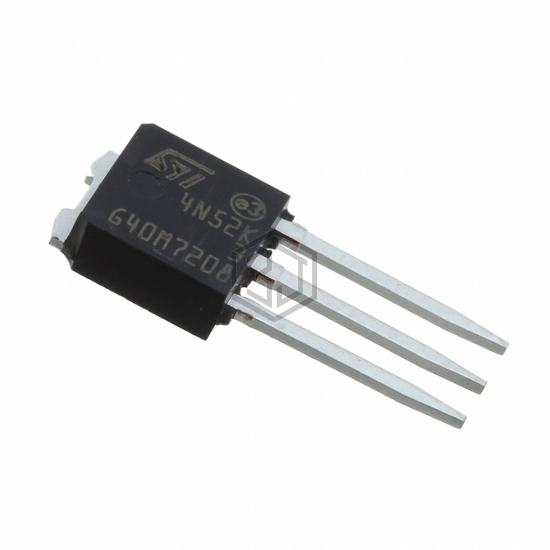

MOSFET N-CH 525V 2.5A IPAK
STU4N52K3 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 525V 2.5A IPAK. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-251-3 Short Leads, IPak, TO-251AA.
In Stock: 2,541
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 525 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.6Ohm @ 1.25A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA |
| Gate Charge (Qg) (Max) @ Vgs | 11 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 334 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 45W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I-PAK |
| Package / Case | TO-251-3 Short Leads, IPak, TO-251AA |
Submit your RFQ for STU4N52K3 and get a quote within 24 hours.
