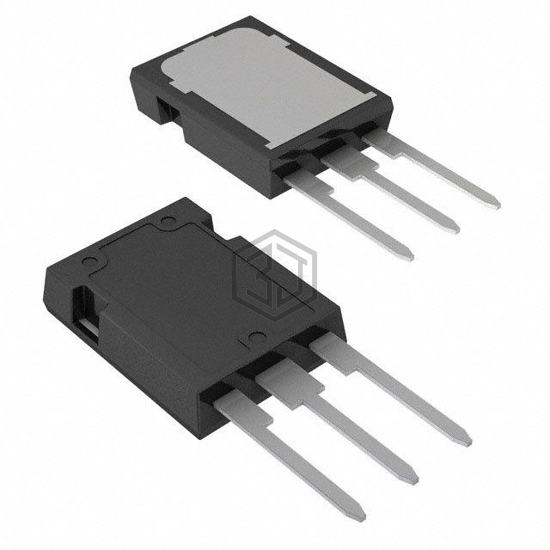

STTH8003CY
DIODE ARRAY GP 300V 40A MAX247
STTH8003CY is a Diodes - Rectifiers - Arrays manufactured by STMicroelectronics. DIODE ARRAY GP 300V 40A MAX247. Key specifications: mounting type Through Hole, package / case TO-247-3.
In Stock: 508
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 300 V |
| Current - Average Rectified (Io) (per Diode) | 40A |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 40 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 60 ns |
| Current - Reverse Leakage @ Vr | 80 µA @ 300 V |
| Operating Temperature - Junction | 175°C (Max) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | MAX247™ |
Frequently Asked Questions
STTH8003CY is a Diodes - Rectifiers - Arrays manufactured by STMicroelectronics. DIODE ARRAY GP 300V 40A MAX247
The mounting type of STTH8003CY is Through Hole.
The package type of STTH8003CY is TO-247-3.
Yes, STTH8003CY is listed as Obsolete. Consider requesting a quote for alternative parts.
