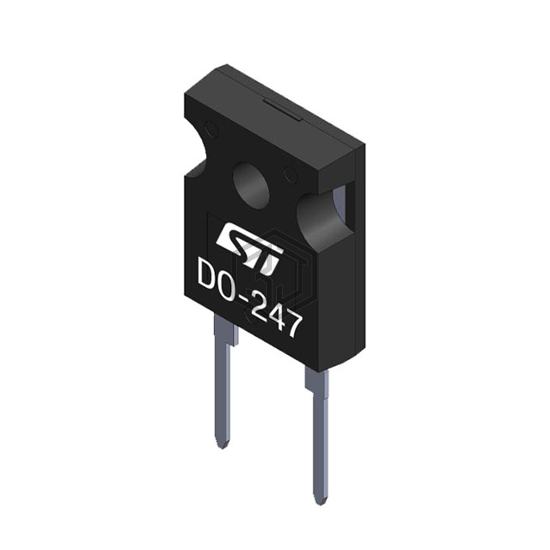

STTH60RQ06WL
600 V, 60 A TURBO 2 SOFT ULTRAFA
STTH60RQ06WL is a Diodes - Rectifiers - Single manufactured by STMicroelectronics. 600 V, 60 A TURBO 2 SOFT ULTRAFA. Key specifications: mounting type Through Hole, package / case TO-247-2.
In Stock: 600
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 60A |
| Voltage - Forward (Vf) (Max) @ If | 2.95 V @ 60 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 65 ns |
| Current - Reverse Leakage @ Vr | 80 µA @ 600 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Through Hole |
| Package / Case | TO-247-2 |
| Supplier Device Package | DO-247 LL |
| Operating Temperature - Junction | 175°C (Max) |
Frequently Asked Questions
STTH60RQ06WL is a Diodes - Rectifiers - Single manufactured by STMicroelectronics. 600 V, 60 A TURBO 2 SOFT ULTRAFA
The mounting type of STTH60RQ06WL is Through Hole.
The package type of STTH60RQ06WL is TO-247-2.
