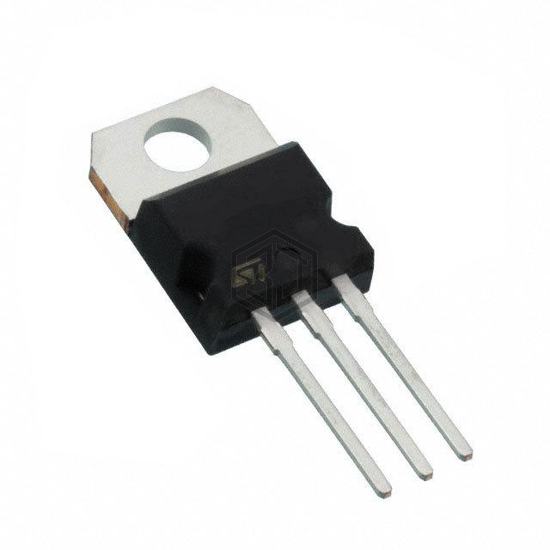

STPS30120CTN
DIODE ARRAY SCHOTTKY 120V TO220
STPS30120CTN is a Diodes - Rectifiers - Arrays manufactured by STMicroelectronics. DIODE ARRAY SCHOTTKY 120V TO220. Key specifications: mounting type Through Hole, package / case TO-220-3.
In Stock: 996
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Voltage - Forward (Vf) (Max) @ If | 920 mV @ 15 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 15 µA @ 120 V |
| Operating Temperature - Junction | 175°C (Max) |
| Mounting Type | Through Hole |
| Package / Case | TO-220-3 |
| Supplier Device Package | TO-220AB Narrow Leads |
Frequently Asked Questions
STPS30120CTN is a Diodes - Rectifiers - Arrays manufactured by STMicroelectronics. DIODE ARRAY SCHOTTKY 120V TO220
The mounting type of STPS30120CTN is Through Hole.
The package type of STPS30120CTN is TO-220-3.
Yes, STPS30120CTN is listed as Obsolete. Consider requesting a quote for alternative parts.
