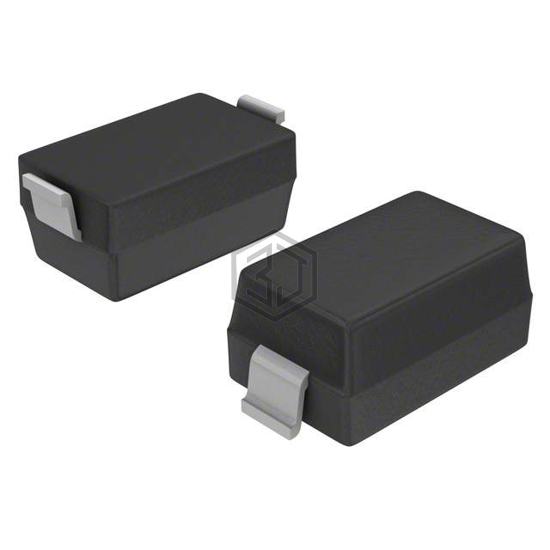

STPS0520Z
DIODE SCHOTTKY 20V 500MA SOD123
STPS0520Z is a Diodes - Rectifiers - Single manufactured by STMicroelectronics. DIODE SCHOTTKY 20V 500MA SOD123. Key specifications: mounting type Surface Mount, package / case SOD-123.
In Stock: 603
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 385 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 150 µA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | SOD-123 |
| Supplier Device Package | SOD-123 |
| Operating Temperature - Junction | 125°C (Max) |
Frequently Asked Questions
STPS0520Z is a Diodes - Rectifiers - Single manufactured by STMicroelectronics. DIODE SCHOTTKY 20V 500MA SOD123
The mounting type of STPS0520Z is Surface Mount.
The package type of STPS0520Z is SOD-123.
