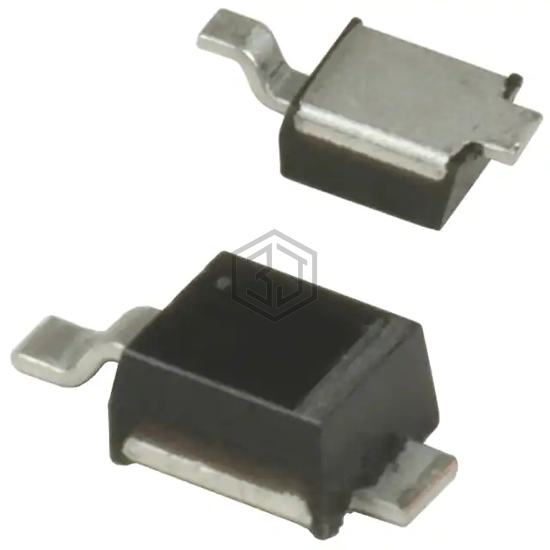

STPS0520M
DIODE SCHOTTKY 20V 500MA STMITE
STPS0520M is a Diodes - Rectifiers - Single manufactured by STMicroelectronics. DIODE SCHOTTKY 20V 500MA STMITE. Key specifications: mounting type Surface Mount, package / case DO-216AA.
In Stock: 6,773
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 20 V |
| Current - Average Rectified (Io) | 500mA |
| Voltage - Forward (Vf) (Max) @ If | 385 mV @ 500 mA |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 50 µA @ 20 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | DO-216AA |
| Supplier Device Package | STmite |
| Operating Temperature - Junction | 150°C (Max) |
Frequently Asked Questions
STPS0520M is a Diodes - Rectifiers - Single manufactured by STMicroelectronics. DIODE SCHOTTKY 20V 500MA STMITE
The mounting type of STPS0520M is Surface Mount.
The package type of STPS0520M is DO-216AA.
Yes, STPS0520M is listed as Obsolete. Consider requesting a quote for alternative parts.
