IC LED DRVR LIN PWM 60MA 24TSSOP

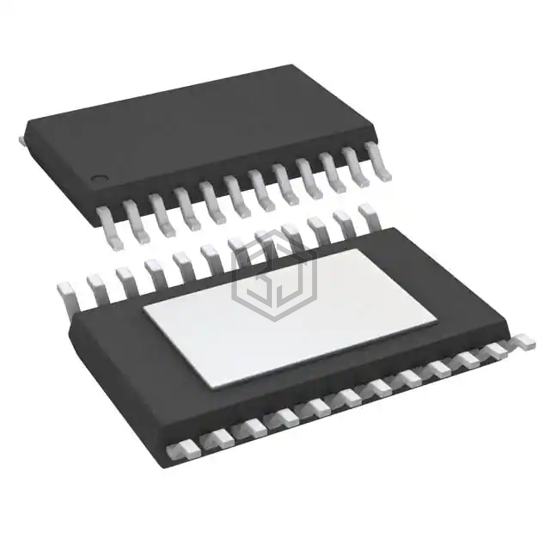

STP1612PW05XTTR is a PMIC - LED Drivers manufactured by STMicroelectronics. IC LED DRVR LIN PWM 60MA 24TSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), voltage - output 20V, package / case 24-TSSOP (0.173", 4.40mm Width) Exposed Pad.
In Stock: 1,315
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Linear |
| Topology | Shift Register |
| Internal Switch(s) | Yes |
| Number of Outputs | 16 |
| Voltage - Supply (Min) | 3V |
| Voltage - Supply (Max) | 5.5V |
| Voltage - Output | 20V |
| Current - Output / Channel | 60mA |
| Frequency | 30MHz |
| Dimming | PWM |
| Applications | Backlight |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 24-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 24-TSSOP-EP |
STP1612PW05XTTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STP16DPP05MTR | STMicroelectronics | IC LED DRIVER LINEAR 40MA 24SO | 94% | View |
| STP16DPP05TTR | STMicroelectronics | IC LED DRVR LINEAR 40MA 24TSSOP | 94% | View |
| STP16CPPS05XTTR | STMicroelectronics | IC LED DRVR LINEAR 40MA 24TSSOP | 94% | View |
| STP16DPPS05XTTR | STMicroelectronics | IC LED DRVR LINEAR 40MA 24TSSOP | 94% | View |
| STP16CPC26TTR | STMicroelectronics | IC LED DRV LIN ANALOG 24TSSOP | 94% | View |
| STP16DP05MTR | STMicroelectronics | IC LED DRIVER LINEAR 100MA 24SOP | 92% | View |
Submit your RFQ for STP1612PW05XTTR and get a quote within 24 hours.
