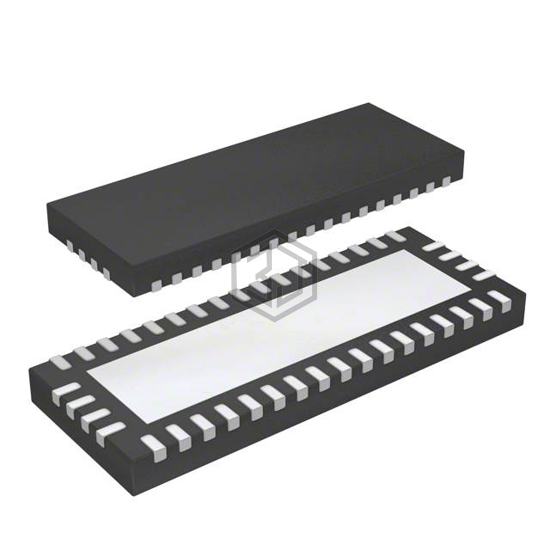

IC SWITCH OCTAL SPDT 42TQFN
STMUX3040QTTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH OCTAL SPDT 42TQFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 42-TQFN, number of circuits 8.
In Stock: 1,993
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 8 |
| On-State Resistance (Max) | 8Ohm |
| Channel-to-Channel Matching (ΔRon) | 500mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 9ns, 8.5ns |
| -3db Bandwidth | 1.3GHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 4pF |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | -30dB @ 300MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 42-TQFN |
| Supplier Device Package | 42-TQFN-EP (3.5x9) |
STMUX3040QTTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADG904BRUZ | Analog Devices Inc. | IC MULTIPLEXER 4X1 20TSSOP | 54% | View |
| ADG904SCPZ-EP-RL7 | Analog Devices Inc. | IC MULTIPLEXER 4X1 20LFCSP | 54% | View |
| TS3A5018DGVR | Texas Instruments | IC SWITCH QUAD SPDT 16TVSOP | 53% | View |
| TS3A5018DR | Texas Instruments | IC SWITCH QUAD SPDT 16SOIC | 53% | View |
| TS3A5018DBQR | Texas Instruments | IC SWITCH QUAD SPDT 16SSOP | 53% | View |
| TS3A5018PWR | Texas Instruments | IC SWITCH QUAD SPDT 16TSSOP | 53% | View |
Submit your RFQ for STMUX3040QTTR and get a quote within 24 hours.
