ULTRA-LOW-POWER DUAL CORE ARM CO

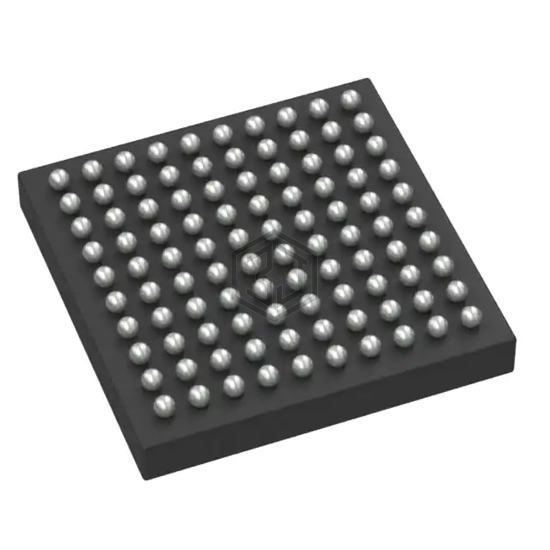

STM32WB55VEY7TR is a RF Transceiver ICs manufactured by STMicroelectronics. ULTRA-LOW-POWER DUAL CORE ARM CO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 1.71V ~ 3.6V, package / case 100-UFBGA, WLCSP.
In Stock: 3,056
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.2, Thread, Zigbee® |
| Modulation | GFSK |
| Frequency | 2.405GHz ~ 2.48GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 6dBm |
| Sensitivity | -100dBm |
| Memory Size | 512kB Flash, 256kB SRAM |
| Serial Interfaces | ADC, I²C, SPI, UART, USART, USB |
| GPIO | 72 |
| Voltage - Supply | 1.71V ~ 3.6V |
| Current - Receiving | 4.5mA ~ 7.9mA |
| Current - Transmitting | 5.2mA ~ 12.7mA |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 100-UFBGA, WLCSP |
| Supplier Device Package | 100-WLCSP (4.4x4.38) |
Submit your RFQ for STM32WB55VEY7TR and get a quote within 24 hours.
