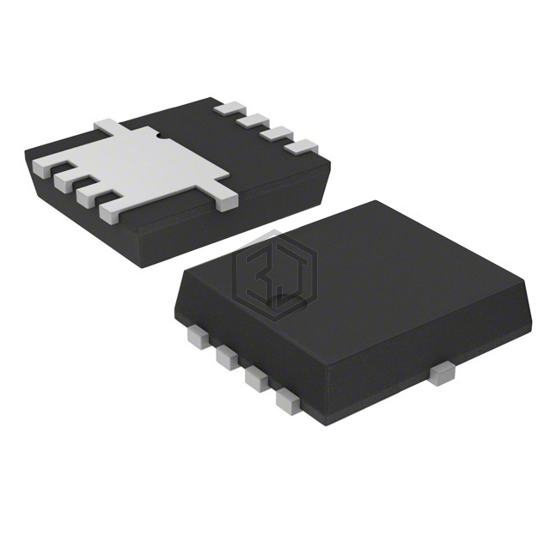

MOSFET P-CH 40V POWERFLAT
STL8P4LLF6 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET P-CH 40V POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 2,800
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 8A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 20.5mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 22 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2850 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.9W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerFlat™ (3.3x3.3) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for STL8P4LLF6 and get a quote within 24 hours.
