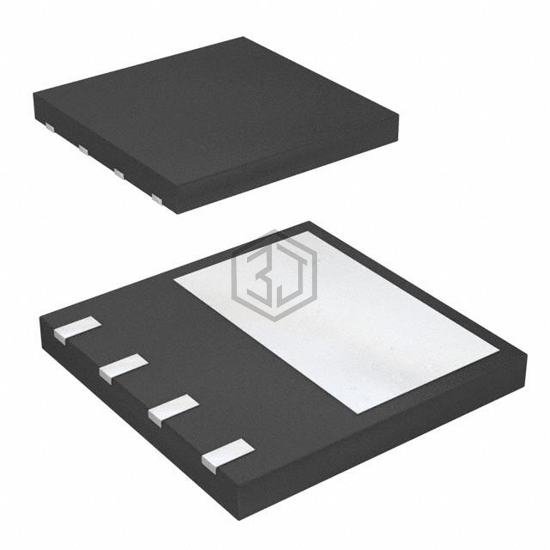

MOSFET N-CH 650V 4.3A 8POWERFLAT
STL57N65M5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 4.3A 8POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 3,711
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 4.3A (Ta), 22.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 69mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 110 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 4200 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 189W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerFlat™ (8x8) HV |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for STL57N65M5 and get a quote within 24 hours.
