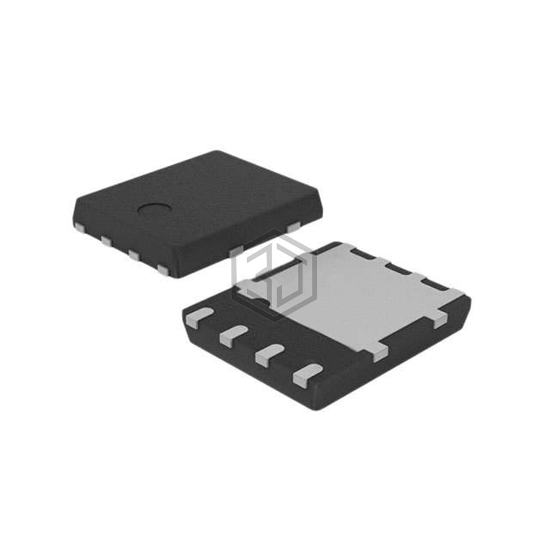

MOSFET N-CH 30V 56A POWERFLAT
STL56N3LLH5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 30V 56A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 4,797
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 56A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 7.5A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 6.5 nC @ 4.5 V |
| Vgs (Max) | +22V, -20V |
| Input Capacitance (Ciss) (Max) @ Vds | 950 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 62.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for STL56N3LLH5 and get a quote within 24 hours.
