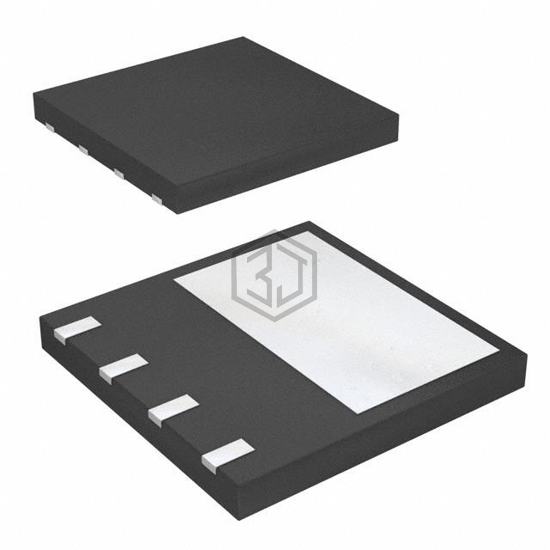

MOSFET N-CH 650V 12A PWRFLAT HV
STL16N65M5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 12A PWRFLAT HV. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 2,407
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 299mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 31 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 1250 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 3W (Ta), 90W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerFlat™ (8x8) HV |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for STL16N65M5 and get a quote within 24 hours.
