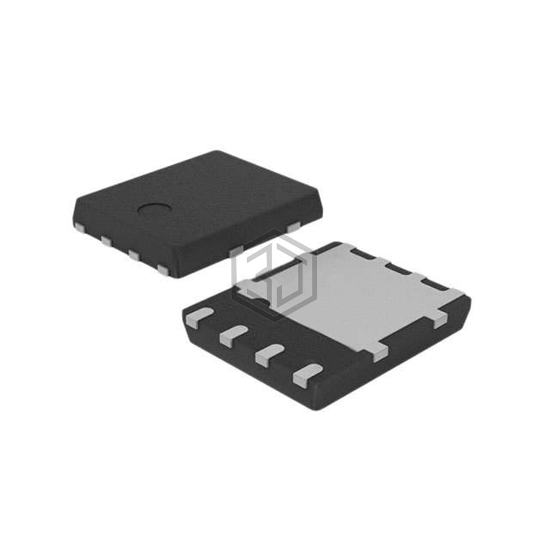

MOSFET N-CH 40V 140A POWERFLAT
STL140N4LLF5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 40V 140A POWERFLAT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 8-PowerVDFN.
In Stock: 7,968
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 140A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.75mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 4.5 V |
| Vgs (Max) | ±22V |
| Input Capacitance (Ciss) (Max) @ Vds | 5900 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 80W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerFlat™ (5x6) |
| Package / Case | 8-PowerVDFN |
Submit your RFQ for STL140N4LLF5 and get a quote within 24 hours.
