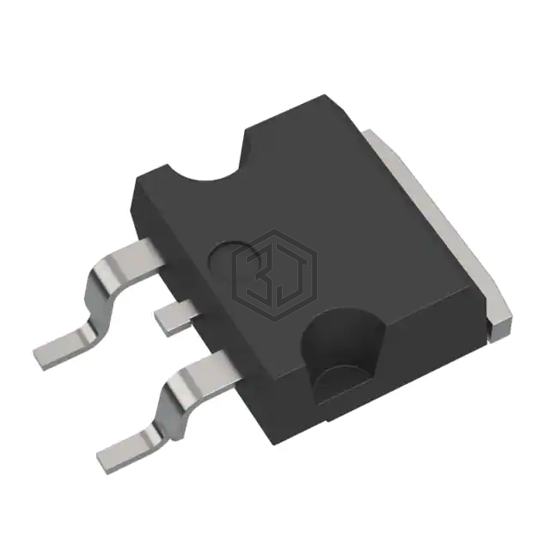

MOSFET N-CH 60V 80A H2PAK-2
STH140N6F7-2 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 60V 80A H2PAK-2. Key specifications: mounting type Surface Mount, operating temperature 175°C (TJ), package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 1,000
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 80A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 40A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 40 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2700 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 158W (Tc) |
| Operating Temperature | 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | H2Pak-2 |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
Submit your RFQ for STH140N6F7-2 and get a quote within 24 hours.
