GALVANICALLY ISOLATED 4 A SINGLE

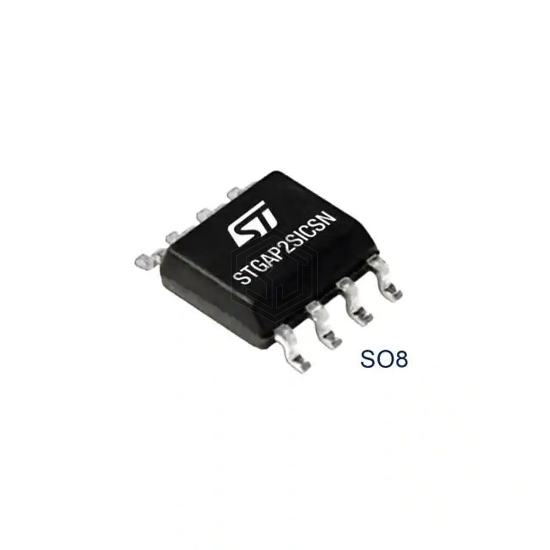

STGAP2SICSNTR is a Isolators - Gate Drivers manufactured by STMicroelectronics. GALVANICALLY ISOLATED 4 A SINGLE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width), approval agency UL.
In Stock: 165
| Attribute | Value |
|---|---|
| Product Status | Active |
| Technology | Capacitive Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 4000Vrms |
| Common Mode Transient Immunity (Min) | 100V/ns |
| Propagation Delay tpLH / tpHL (Max) | 90ns, 90ns |
| Pulse Width Distortion (Max) | 20ns |
| Rise / Fall Time (Typ) | 30ns, 30ns |
| Current - Output High, Low | 4A, 4A |
| Current - Peak Output | 4A |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 16.4V ~ 26V |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SO |
| Approval Agency | UL |
Submit your RFQ for STGAP2SICSNTR and get a quote within 24 hours.
