DGTL ISO 2.5KV 1CH GATE DVR 24SO

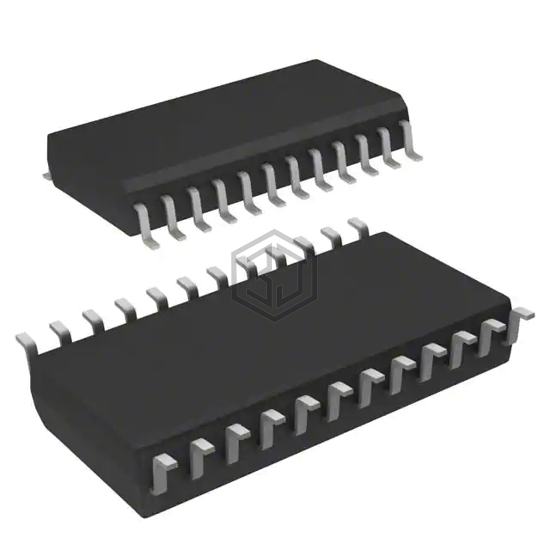

STGAP1AS is a Isolators - Gate Drivers manufactured by STMicroelectronics. DGTL ISO 2.5KV 1CH GATE DVR 24SO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-SOIC (0.295", 7.50mm Width).
In Stock: 7,351
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Technology | Magnetic Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 2500Vrms |
| Common Mode Transient Immunity (Min) | - |
| Propagation Delay tpLH / tpHL (Max) | 130ns, 130ns |
| Pulse Width Distortion (Max) | 10ns |
| Rise / Fall Time (Typ) | 25ns, 25ns (Max) |
| Current - Output High, Low | 2.5A, 2.5A |
| Current - Peak Output | - |
| Voltage - Forward (Vf) (Typ) | - |
| Current - DC Forward (If) (Max) | - |
| Voltage - Output Supply | 4.5V ~ 36V |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 24-SO |
| Approval Agency | - |
Submit your RFQ for STGAP1AS and get a quote within 24 hours.
