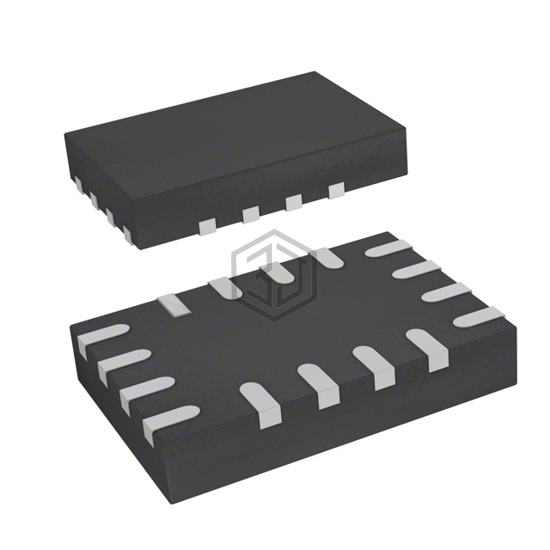

IC SWITCH DUAL SPDT 16QFN
STG5683QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 16QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 16-UFQFN, number of circuits 2.
In Stock: 2,970
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 550mOhm |
| Channel-to-Channel Matching (ΔRon) | 15mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.5V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 80ns, 50ns |
| -3db Bandwidth | 33MHz |
| Charge Injection | 46pC |
| Channel Capacitance (CS(off), CD(off)) | 6pF |
| Current - Leakage (IS(off)) (Max) | - |
| Crosstalk | -60dB @ 100kHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-UFQFN |
| Supplier Device Package | 16-QFN (2.6x1.8) |
STG5683QTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ISL43141IBZ | Renesas Electronics America Inc | IC SWITCH QUAD SPST 16SOIC | 79% | View |
| MAX4522EUE+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 16TSSOP | 69% | View |
| ISL43111IHZ-T | Renesas Electronics America Inc | IC SWITCH SPST SOT23-5 | 69% | View |
| TS5A22364DGSR | Texas Instruments | IC SWITCH SPDT DUAL 10VSSOP | 61% | View |
| TS5A22364DRCR | Texas Instruments | IC SWITCH DUAL SPDT 10SON | 61% | View |
| TS5A22364YZPR | Texas Instruments | IC SWITCH DUAL SPDT 10DSBGA | 61% | View |
Submit your RFQ for STG5683QTR and get a quote within 24 hours.
