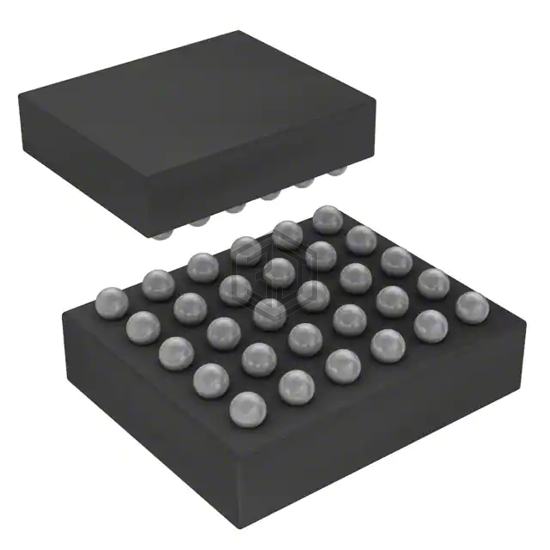

IC SWITCH QUAD DPDT 30FLIPCHIP
STG3820BJR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD DPDT 30FLIPCHIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 30-WFBGA, FCBGA, number of circuits 4.
In Stock: 318
| Attribute | Value |
|---|---|
| Product Status | Active |
| Switch Circuit | DPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 5.8Ohm |
| Channel-to-Channel Matching (ΔRon) | 300mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 13ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | 6.4pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -78dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 30-WFBGA, FCBGA |
| Supplier Device Package | FlipChip 30 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| STG3682QTR | STMicroelectronics | IC SWITCH DUAL SPDT 10QFN | 87% | View |
| MAX4619ESE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 3 X SPDT 16SOIC | 63% | View |
| MAX4619EUE+T | Analog Devices Inc./Maxim Integrated | IC MUX/SW TRIPLE LV SPDT 16TSSOP | 63% | View |
| MAX4618EUE+ | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER DUAL 4X1 16TSSOP | 58% | View |
| MAX4641EUA+ | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 55% | View |
| MAX4643EUA+T | Analog Devices Inc./Maxim Integrated | IC SWITCH DUAL SPST 8UMAX | 55% | View |
Submit your RFQ for STG3820BJR and get a quote within 24 hours.
