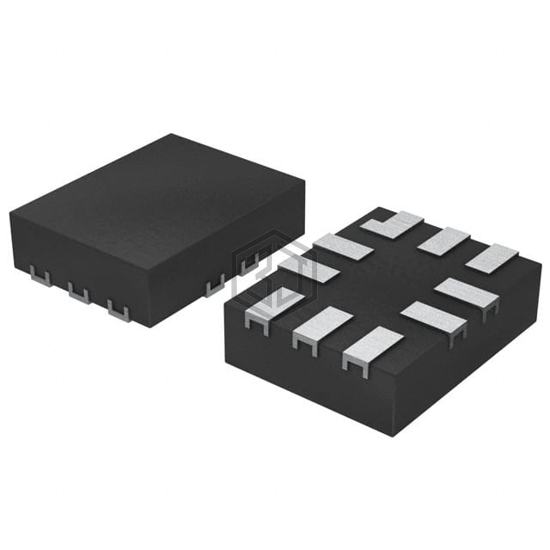

IC SWITCH DUAL SPDT 10QFN
STG3220QTR is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH DUAL SPDT 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 10-UFQFN, number of circuits 2.
In Stock: 4,127
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Number of Circuits | 2 |
| On-State Resistance (Max) | 5.4Ohm |
| Channel-to-Channel Matching (ΔRon) | 100mOhm |
| Voltage - Supply, Single (V+) | 1.65V ~ 4.3V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 15ns, 13ns |
| -3db Bandwidth | 800MHz |
| Charge Injection | 6.4pC |
| Channel Capacitance (CS(off), CD(off)) | 2pF |
| Current - Leakage (IS(off)) (Max) | 20nA |
| Crosstalk | -78dB @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFQFN |
| Supplier Device Package | 10-QFN (1.8x1.4) |
STG3220QTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAX4619ESE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 3 X SPDT 16SOIC | 61% | View |
| MAX4617EUE+T | Analog Devices Inc./Maxim Integrated | IC MULTIPLEXER 8X1 16TSSOP | 58% | View |
| MAX4620ESD+T | Analog Devices Inc./Maxim Integrated | IC SWITCH QUAD SPST 14SOIC | 58% | View |
| MAX4645EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 50% | View |
| MAX4646EUK+T | Analog Devices Inc./Maxim Integrated | IC SWITCH SPST SOT23-5 | 50% | View |
| MAX4646EUT+T | Analog Devices Inc./Maxim Integrated | IC SW ANLG 2.5 OHM SPST SOT23-6 | 50% | View |
Submit your RFQ for STG3220QTR and get a quote within 24 hours.
