MOSFET N-CH 650V 46A ISOWATT

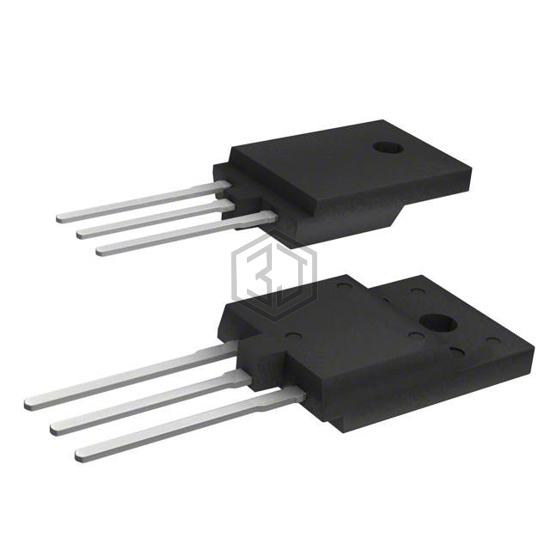

STFW60N65M5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 46A ISOWATT. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-3P-3 Full Pack.
In Stock: 282
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 46A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 59mOhm @ 23A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 139 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 6810 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 79W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-3PF |
| Package / Case | TO-3P-3 Full Pack |
Submit your RFQ for STFW60N65M5 and get a quote within 24 hours.
