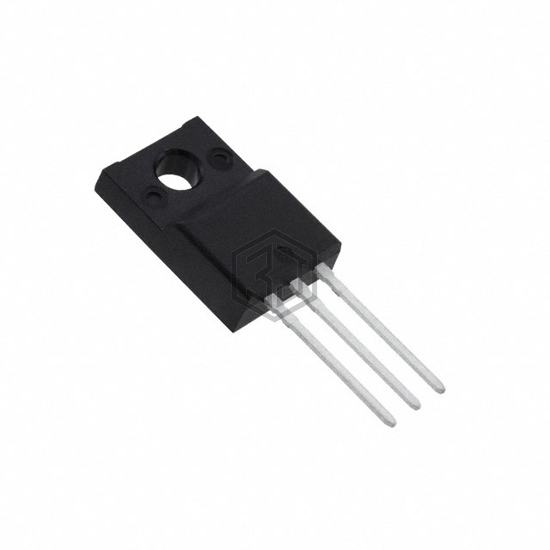

MOSFET N-CH 650V 4A TO220FP
STFU6N65 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N-CH 650V 4A TO220FP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TA), package / case TO-220-3 Full Pack.
In Stock: 983
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 2.7Ohm @ 2A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 463 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 620mW (Ta), 77W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TA) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-220FP |
| Package / Case | TO-220-3 Full Pack |
Submit your RFQ for STFU6N65 and get a quote within 24 hours.
