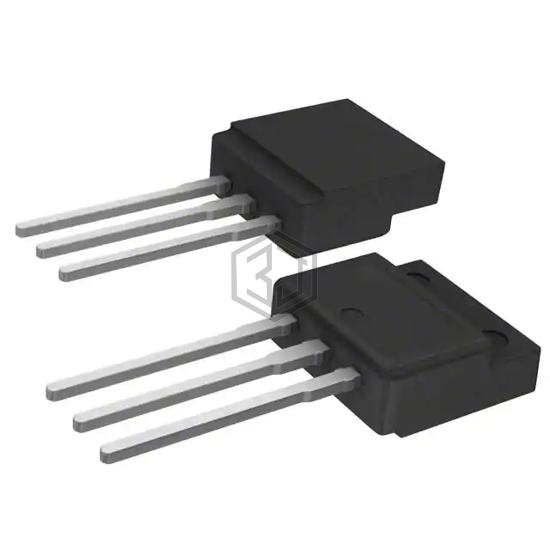

MOSFET N CH 650V 28A I2PAKFP
STFI34N65M5 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. MOSFET N CH 650V 28A I2PAKFP. Key specifications: mounting type Through Hole, operating temperature 150°C (TJ), package / case TO-262-3 Full Pack, I²Pak.
In Stock: 1,492
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 28A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 110mOhm @ 14A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 62.5 nC @ 10 V |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 2700 pF @ 100 V |
| FET Feature | - |
| Power Dissipation (Max) | 35W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | I2PAKFP (TO-281) |
| Package / Case | TO-262-3 Full Pack, I²Pak |
Submit your RFQ for STFI34N65M5 and get a quote within 24 hours.
