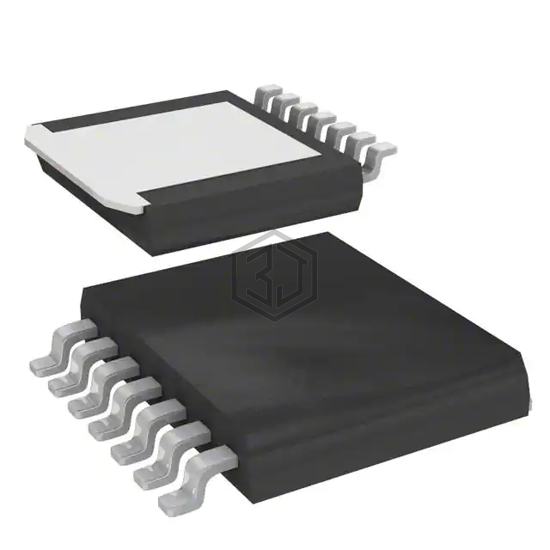

IC REG LINEAR 2.6V/3.3V/8V 7SPAK
ST3L01K7R is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 2.6V/3.3V/8V 7SPAK. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 125°C, package / case SPak-7 (7 leads + Tab), current - supply (max) 20 mA.
In Stock: 9,431
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 3 |
| Voltage - Input (Max) | 5.25V |
| Voltage - Output (Min/Fixed) | 2.6V, 3.3V, 8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 1.9V @ 1.2A, 1.4V @ 1A, 2.2V @ 200mA |
| Current - Output | 1.2A, 1A, 200mA |
| Current - Quiescent (Iq) | 10 mA |
| Current - Supply (Max) | 20 mA |
| PSRR | 30dB (100Hz ~ 100kHz) (MIN), 30dB (100Hz ~ 100kHz) (MIN), 40dB (100Hz ~ 100kHz) (MIN) |
| Control Features | - |
| Protection Features | Over Temperature, Short Circuit |
| Operating Temperature | 0°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | SPak-7 (7 leads + Tab) |
| Supplier Device Package | 7-SPAK |
ST3L01K7R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CS5233-3GDPR5 | onsemi | IC REG LINEAR 3.3V 1.5A D2PAK-5 | 69% | View |
| LP3872EMP-3.3 | National Semiconductor | IC REG LINEAR 3.3V 1.5A SOT223 | 63% | View |
| LP38513S-1.8/NOPB | Texas Instruments | IC REG LIN 1.8V 3A DDPAK/TO263-5 | 59% | View |
| LP38513SX-1.8/NOPB | Texas Instruments | IC REG LIN 1.8V 3A DDPAK/TO263-5 | 59% | View |
| CS5233-3GDF8 | onsemi | IC REG LINEAR 3.3V 500MA 8SOIC | 59% | View |
| LP3962EMPX-1.8 | Texas Instruments | IC REG LINEAR 1.8V 1.5A SOT223-5 | 59% | View |
Submit your RFQ for ST3L01K7R and get a quote within 24 hours.
