IC POWER MOSFET 1200V HIP247

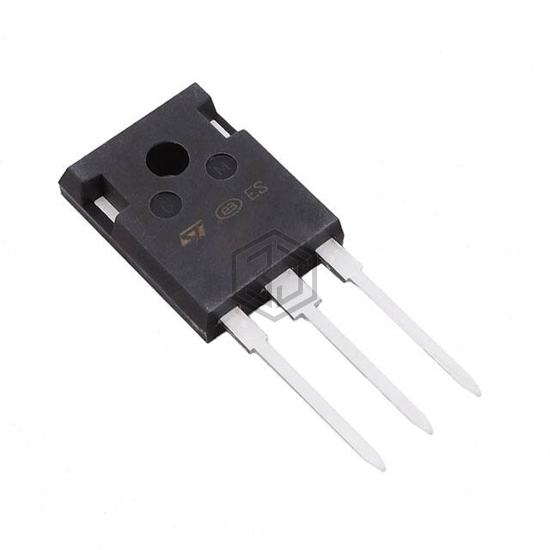

SCTWA20N120 is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. IC POWER MOSFET 1200V HIP247. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 200°C (TJ), package / case TO-247-3.
In Stock: 593
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 20A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 239mOhm @ 10A, 20V |
| Vgs(th) (Max) @ Id | 3.5V @ 1mA (Typ) |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 20 V |
| Vgs (Max) | +25V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 650 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 175W (Tc) |
| Operating Temperature | -55°C ~ 200°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | HiP247™ Long Leads |
| Package / Case | TO-247-3 |
Submit your RFQ for SCTWA20N120 and get a quote within 24 hours.
