SICFET N-CH 650V 45A H2PAK-7

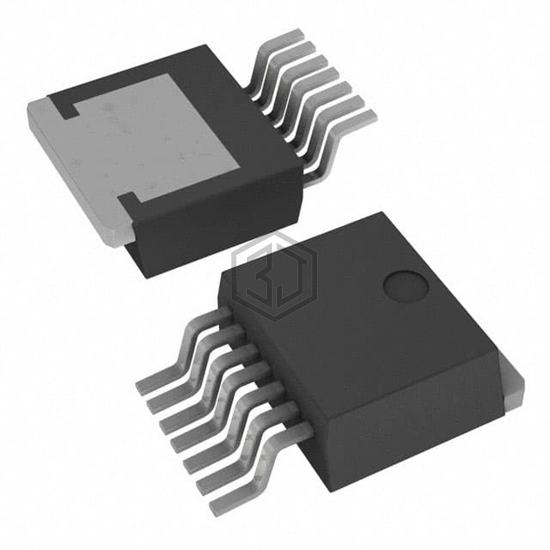

SCTH35N65G2V-7AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. SICFET N-CH 650V 45A H2PAK-7. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 761
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 45A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 18V, 20V |
| Rds On (Max) @ Id, Vgs | 67mOhm @ 20A, 20V |
| Vgs(th) (Max) @ Id | 3.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 73 nC @ 20 V |
| Vgs (Max) | +22V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1370 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 208W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | H2PAK-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
Submit your RFQ for SCTH35N65G2V-7AG and get a quote within 24 hours.
