AUTOMOTIVE-GRADE SILICON CARBIDE

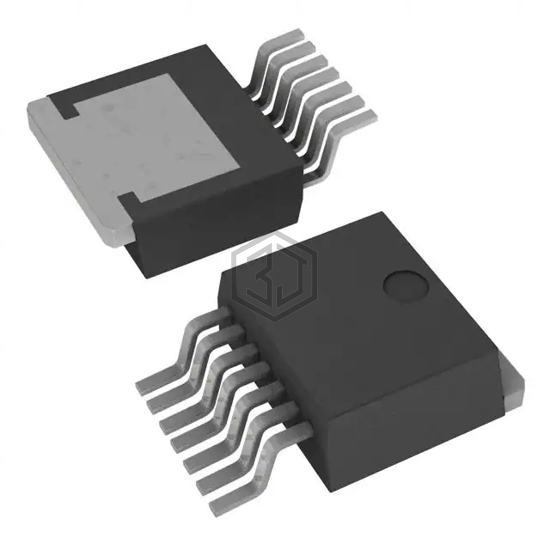

SCT040H65G3AG is a Transistors - FETs, MOSFETs - Single manufactured by STMicroelectronics. AUTOMOTIVE-GRADE SILICON CARBIDE. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 175°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA.
In Stock: 150
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | SiC (Silicon Carbide Junction Transistor) |
| Drain to Source Voltage (Vdss) | 650 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 15V, 18V |
| Rds On (Max) @ Id, Vgs | 55mOhm @ 20A, 18V |
| Vgs(th) (Max) @ Id | 4.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 39.5 nC @ 18 V |
| Vgs (Max) | +18V, -5V |
| Input Capacitance (Ciss) (Max) @ Vds | 920 pF @ 400 V |
| FET Feature | - |
| Power Dissipation (Max) | 221W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | H2PAK-7 |
| Package / Case | TO-263-8, D²Pak (7 Leads + Tab), TO-263CA |
Submit your RFQ for SCT040H65G3AG and get a quote within 24 hours.
