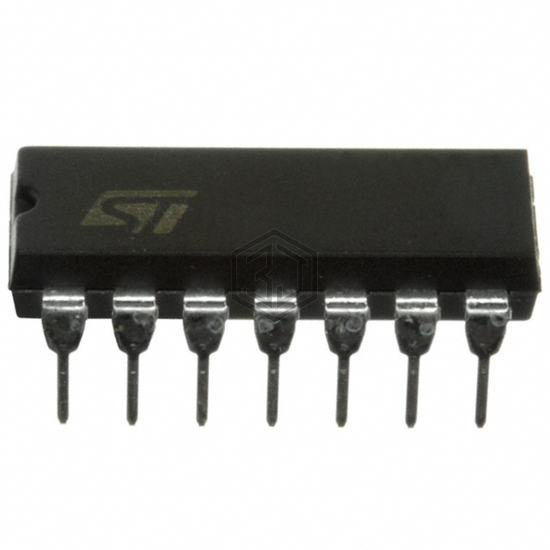

IC SWITCH QUAD 1X1 14DIP
M74HC4016B1R is a Interface - Analog Switches, Multiplexers, Demultiplexers manufactured by STMicroelectronics. IC SWITCH QUAD 1X1 14DIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C (TA), package / case 14-DIP (0.279", 7.10mm), number of circuits 4.
In Stock: 2,034
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Switch Circuit | SPST - NO |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Circuits | 4 |
| On-State Resistance (Max) | 120Ohm |
| Channel-to-Channel Matching (ΔRon) | 6Ohm |
| Voltage - Supply, Single (V+) | 2V ~ 12V |
| Voltage - Supply, Dual (V±) | - |
| Switch Time (Ton, Toff) (Max) | 14ns, 24ns |
| -3db Bandwidth | 42MHz |
| Charge Injection | - |
| Channel Capacitance (CS(off), CD(off)) | 1pF, 5pF |
| Current - Leakage (IS(off)) (Max) | 100nA |
| Crosstalk | -50dB @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 14-DIP (0.279", 7.10mm) |
| Supplier Device Package | 14-DIP |
M74HC4016B1R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| M74HC4316B1R | STMicroelectronics | IC SWITCH QUAD 1X1 16DIP | 97% | View |
| M74HC4053B1R | STMicroelectronics | IC MUX/DEMUX TRIPLE 2X1 16DIP | 59% | View |
