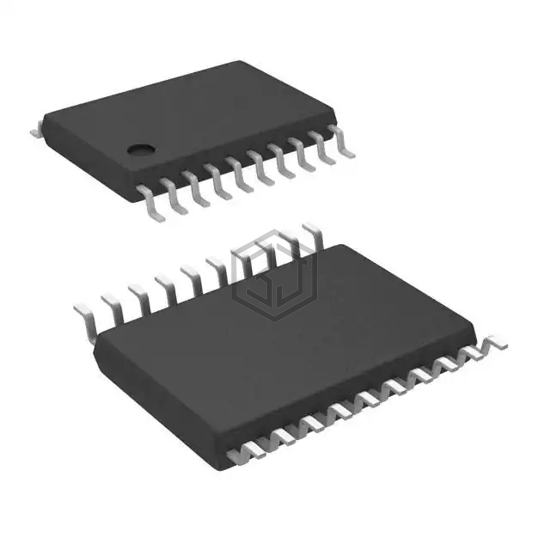

IC FF D-TYPE SNGL 8BIT 20TSSOP
M74HC273TTR is a Logic - Flip Flops manufactured by STMicroelectronics. IC FF D-TYPE SNGL 8BIT 20TSSOP. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TA), voltage - supply 2V ~ 6V, package / case 20-TSSOP (0.173", 4.40mm Width).
In Stock: 7,129
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Function | Master Reset |
| Type | D-Type |
| Output Type | Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 66 MHz |
| Max Propagation Delay @ V, Max CL | 25ns @ 6V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Iq) | 4 µA |
| Input Capacitance | 5 pF |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-TSSOP |
| Package / Case | 20-TSSOP (0.173", 4.40mm Width) |
M74HC273TTR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| M74HC273RM13TR | STMicroelectronics | IC FF D-TYPE SNGL 8BIT 20SOP | 100% | View |
| M74HC174RM13TR | STMicroelectronics | IC FF D-TYPE SNGL 6BIT 16SOP | 97% | View |
| M74HC174TTR | STMicroelectronics | IC FF D-TYPE SNGL 6BIT 16TSSOP | 97% | View |
| CD74HC273M96 | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 90% | View |
| CD74HC273M | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 90% | View |
| CD74HCT273MR2499 | Harris Corporation | IC FF D-TYPE SNGL 8BIT 20SOIC | 77% | View |
Submit your RFQ for M74HC273TTR and get a quote within 24 hours.
