IC REG LINEAR 12V 500MA PPAK

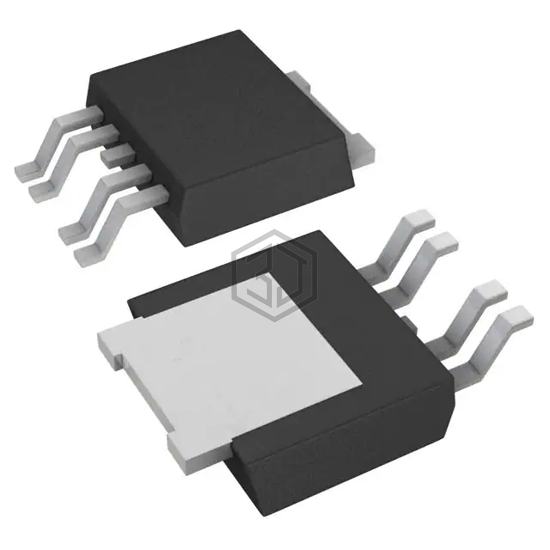

LF120CPT-TR is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 12V 500MA PPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, current - supply (max) 12 mA.
In Stock: 6,188
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 12V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.7V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 1.5 mA |
| Current - Supply (Max) | 12 mA |
| PSRR | 69dB ~ 54dB (120Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Supplier Device Package | PPAK |
LF120CPT-TR is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LF18ABPT-TR | STMicroelectronics | IC REG LINEAR 1.8V 500MA PPAK | 77% | View |
| LF15ABDT-TR | STMicroelectronics | IC REG LINEAR 1.5V 500MA DPAK | 75% | View |
| KF33BDT-TR | STMicroelectronics | IC REG LINEAR 3.3V 500MA DPAK | 71% | View |
| KF50BD-TR | STMicroelectronics | IC REG LINEAR 5V 500MA 8SO | 71% | View |
| ADM7150ACPZ-3.3-R2 | Analog Devices Inc. | IC REG LINEAR 3.3V 800MA 8LFCSP | 60% | View |
| ADM7150ARDZ-3.0 | Analog Devices Inc. | IC REG LINEAR 3V 800MA 8SOIC | 60% | View |
