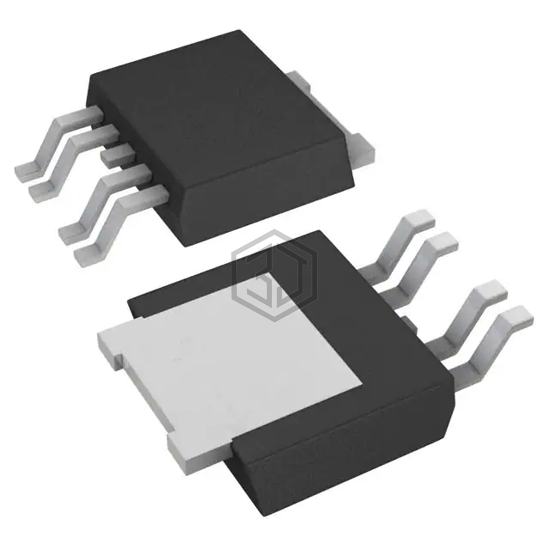

IC REG LINEAR 2.5V/3.3V PPAK
LDR2533BPT-R is a PMIC - Voltage Regulators - Linear manufactured by STMicroelectronics. IC REG LINEAR 2.5V/3.3V PPAK. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-252-5, DPak (4 Leads + Tab), TO-252AD, current - supply (max) 1.6 mA.
In Stock: 126
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 15V |
| Voltage - Output (Min/Fixed) | 2.5V, 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.8V @ 1A |
| Current - Output | 500mA, 1A |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | 1.6 mA |
| PSRR | 70dB (120Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Short Circuit |
| Operating Temperature | -40°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | TO-252-5, DPak (4 Leads + Tab), TO-252AD |
| Supplier Device Package | PPAK |
LDR2533BPT-R is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ADP7104ARDZ-3.0-R7 | Analog Devices Inc. | IC REG LINEAR 3V 500MA 8SOIC | 70% | View |
| ADP7104ARDZ-3.3-R7 | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 8SOIC | 67% | View |
| ADP7104ACPZ-3.3-R7 | Analog Devices Inc. | IC REG LINEAR 3.3V 500MA 8LFCSP | 67% | View |
| ADP7105ARDZ-1.8-R7 | Analog Devices Inc. | IC REG LINEAR 1.8V 500MA 8SOIC | 64% | View |
| ADP7104ACPZ-1.8-R7 | Analog Devices Inc. | IC REG LINEAR 1.8V 500MA 8LFCSP | 64% | View |
| ADP7105ARDZ-1.8 | Analog Devices Inc. | IC REG LINEAR 1.8V 500MA 8SOIC | 64% | View |
Submit your RFQ for LDR2533BPT-R and get a quote within 24 hours.
